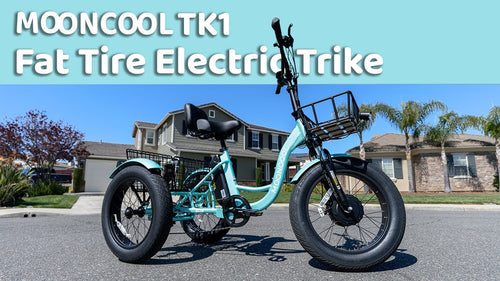

A Better eTrike!! Mooncool TK1 Fat 20" | Cheaper Than Lectric XP Trike
E-Bike Reviews
Recommended Height: 5'-6'3"
A | Top Tube Horizontal | 22.44 in |
B | Wheelbase | 47.2 in |
C | Stand Over Height | 16.7 in |
D | Handlebar Length | 26.6 in |
E | Total Length | 67.7 in |
F | Total Width | 31.5 in |
G | Seat Height Min/Max | 31~39 in |
H | Handlebar Height Min/Max | 46~49 in |
I | Front Basket | 13.78*11.02*5.12 in |
J | Rear Basket | 19.29*20.08*11.42 in |
K | Wheel Size | 20 in |
L |
Seat Size
|
16.5*12.6 in |
★ | Recommended Height | 5'~6'3" |
Frame | 6061 Aluminum+Hiten Steel |
Fork | Suspension, Coil Spring Structure |
Handle Bar | Alloy ,Bmx Style, Barboe 31.8mm, Length 660mm, Rise 120mm |
Stem | Alloy,Barboe 28.6*31.8mm, Folding, Extention Tube 180mm |
Grip | Soft PVC Rubber |
Saddle | Comfortable Big Vacuum Foaming Seat With Backrest |
Seat Post | Alloy ∮30.9*2.2t*300mm Length |
Seat Post Clamp | Id34.9mm, Quick Release |
Display
|
Multifuction YL81, LCD Color Screen, Appears More Clearly in Sunlight, 3 Levels, Speed Limit 16MPH
|
Shifter | Shimnano 7 Speed |
Derailleur | Shimnano |
Chainwheel | 1/2*3/32*44t*170mm Alloy Crank 170mm, Steel Chainring 44t |
Chain | 1/2*3/32*132l |
Freewheel | 1/2*3/32*14-28t |
Pedal | Alloy Body 9/16" |
Brake | Mechanical Disc Brake, Alloy, Rotor 160mm |
Brake Level | Alloy, Disc Brake With Electrical Cut-Off Fuction |
Rim | Alloy 20inch * 4.0" * 13g * 36h, AV |
Tire | 20" *4.0 |
Spokes | Stainless, 13g |
Fenders | With |
Rear Rack | With |
Front Basket | With |
Rear Basket | With |
Assembly | 65% |
Colors | 6 Colors |
Weight | G.W. 116.4lbs, N.W.89.9lbs |
Carton Size | 149*35*94cm |
Load Capacity | 400LBS |
Recommended Height | 5'-6'3" |
Motor | 48V*500W Front Motor, Peak Power 750W, 85Nm Peak Torque |
Battery Capacity | Lithium 48V*14.5Ah |
Battery Range | 30~45 Miles |
Charger | 100-120V 54.6V 2.0A |
Battery Charging Time | 6-8 Hours |
Top Speed | 16 MPH |
Controller | Sine Wave Foc 48V20AMP Peak |
Pedal Sensor |
Cadence Sensor |
Wire Harness |
All Water Resistant |
Throttle | Thumb Throttle |
Front Light | LED Ebike Version with Horn Function |
Our approach to accessibility goes beyond physical design
And inclusivity, making sure every rider feels confident and empowered
It encompasses affordability, ensuring our E-Trikes are within reach
Front Drive Motor
Rated at 500W, the motor can surge up to a peak power of 750W, ensuring quick and smooth rides. Its high torque of 85Nm guarantees easy hill-climbing.
Battery Power
With a 48V*15Ah lithium battery, it allows for extended rides with a range of 30-45 miles. Requiring a charging time of 6-8 hours, the battery ensures reliable, sustained power.
20" x 4.0 Fat Tires
Sporting 20" x 4.0 fat tires, the etrike promises safety, stability, and versatility across almost all terrains.
Vacuum Foam Seat
It includes a large, vacuum-foamed seat with a backrest, ensuring ride comfort and support, enhancing the overall ride quality.
Shimano 7 Speed
Equipped with a Shimano 7-speed gear system, the etrike ensures flexible and smooth speed control.
Large Front & Rear Baskets
With spacious front & rear baskets, it provides ample room for personal items or larger cargo, adding a level of convenience and practicality to your rides.
Your reliable travel buddy
500W Front Drive Motor
350W Front Drive Motor
48V*15Ah
36V*10.4Ah
30~45 Miles
15~30 Miles
16 mph
16 mph
6061 Aluminum+Hiten Steel
Hi-ten steel frame
Big Vacuum Foaming Seat With Backrest
Comfortable saddle
Shimnano 7 Speed
Shimnano 7 Speed
20" * 4.0 Fat Tires
24" * 1.95 / 26" * 2.125
Suspension Fork
25.6*25.4*30 206mm Steer
Front & Rear Basket
Rear Basket
400 LBS
350 LBS
Yes
/
65%
50%
This product is rated 4.7 of 5.0 stars.
It has received 21 reviews.
The trike arrives 65% pre-assembled for your convenience. The remaining assembly is straightforward and can be completed with just a bit of DIY — no need to be a professional. You'll be ready to ride in no time!
Yes, indeed. Our trike is designed with ease of use and stability in mind, making it a great choice for older adults and persons with disabilities who are looking for a safe and comfortable riding experience.
Yes, it does. The trike comes equipped with a battery, and we include both a front and a rear basket as standard features, so you have everything you need to get started right away.
The TK1 Fat20 is designed for riders who are between 5'-6'3" tall for optimal comfort and performance.
